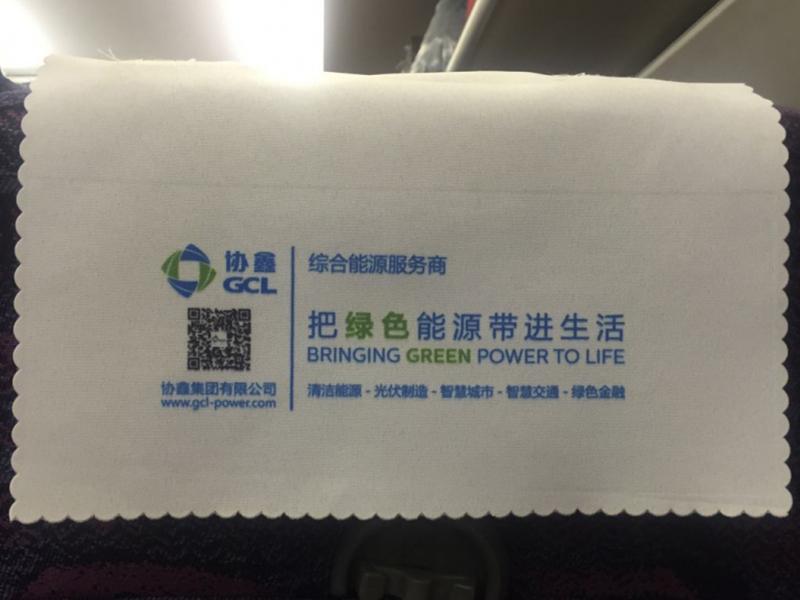

The ultrasonic cross cutting machine is primarily used for slitting of various cloths, including towel cloth, glasses cloth, dustless cloth, antistatic wipe and headrests, with an adjustable slitting width, at a minimum of 15cm.

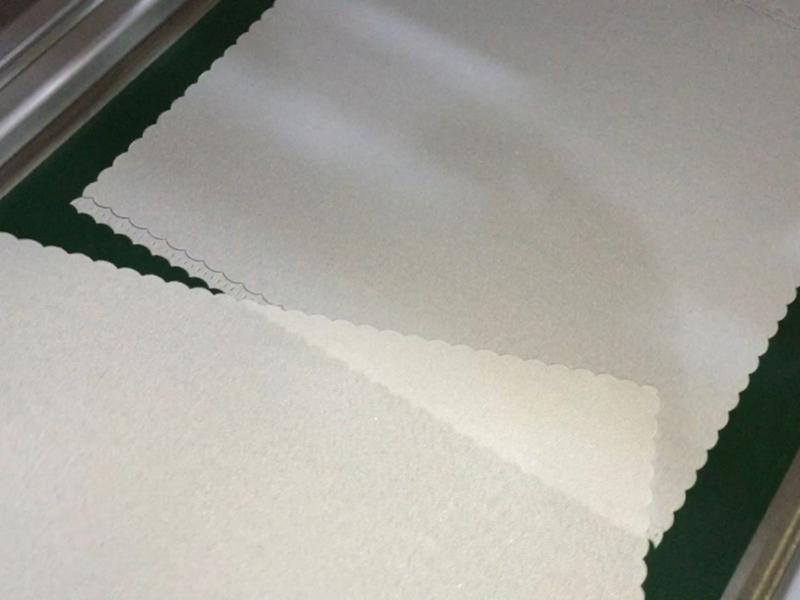

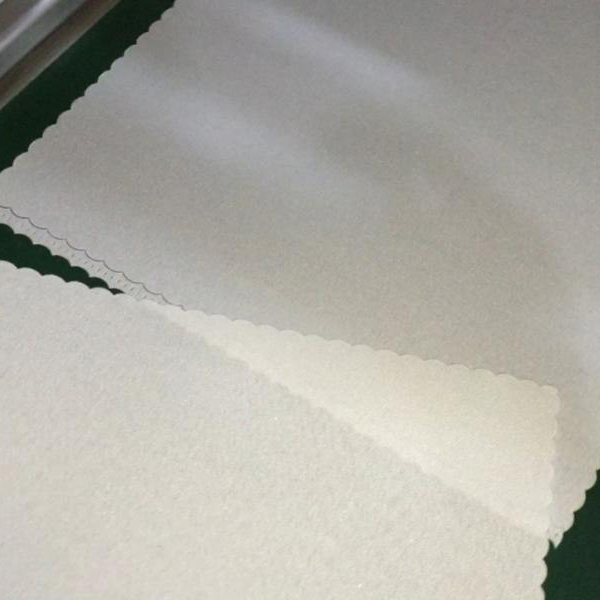

There are various kinds of slitting types: straight edges, serrated edges, wave laces, and small round edges
We offer a variety of models, and offer customized services to meet customer requirements.
|Power supply ||220V |
|Input power ||2KW |
|Max. unwinding width ||400mm |
|Max. working width ||200mm |
|Max. cutting speed ||30m/min |
|Outline size(length×width×height) ||1500*1500*1500mm |
|Net weight ||600KG |
- The cutting length of the ultrasonic cross cutting machine is controlled by PLC and the length can be set up freely, with a maximum of 80cm.
- The cutting speed is controlled by the frequency conversion motor, which can be freely matched; the slitting width is adjustable and the minimum value is 15cm.
- With an aluminum alloy structure, the equipment has a high stability during high-speed operation, effectively improving the mechanical durability and the service life.
- The tension of unwinding fabrics is controlled by mechanical tension control so that the feeding is uniform, thus the smoothness and neatness of the cuts are improved.
- Equipped with counting device, it can achieve automatic stop function at a fixed number.
- Ultrasonic cutting, no coarse sides, no coking, no discoloration.
